Description

Ideal for laboratory & industrial applications, the OHAUS Scout STX features an easy to navigate colour touchscreen display & a slim design which allows stackable storage. Geared for superior performance with fast stabilization time and high resolution weighing results, these portable balances set a new standard for a broad range of weighing applications. The Scout STX also features superior overload protection and expanded connectivity options.

Large, intuitive, colour touchscreen display allows for easy operation – guiding the user through every step of the weighing application.

Advanced weighing technology allows for one-second stabilization time for increased productivity.

Integrated overload protection system rated at ten times the capacity protects the balance in demanding environments.

Applications

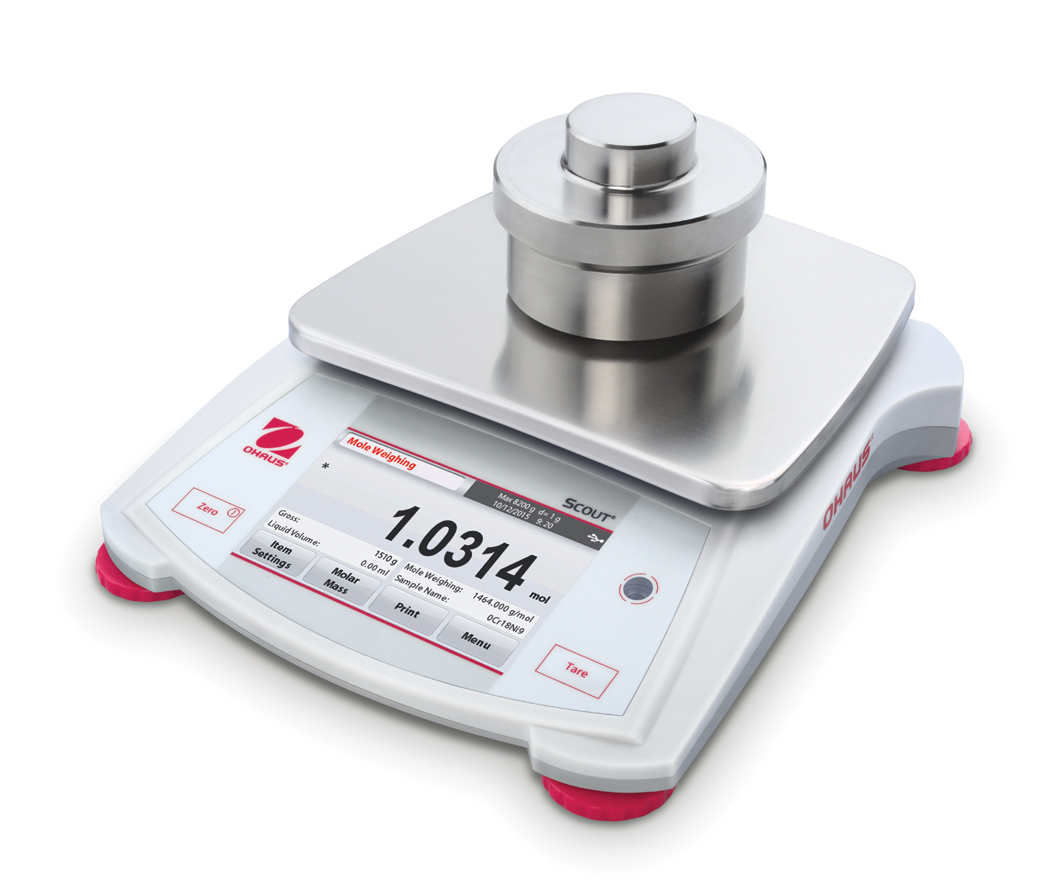

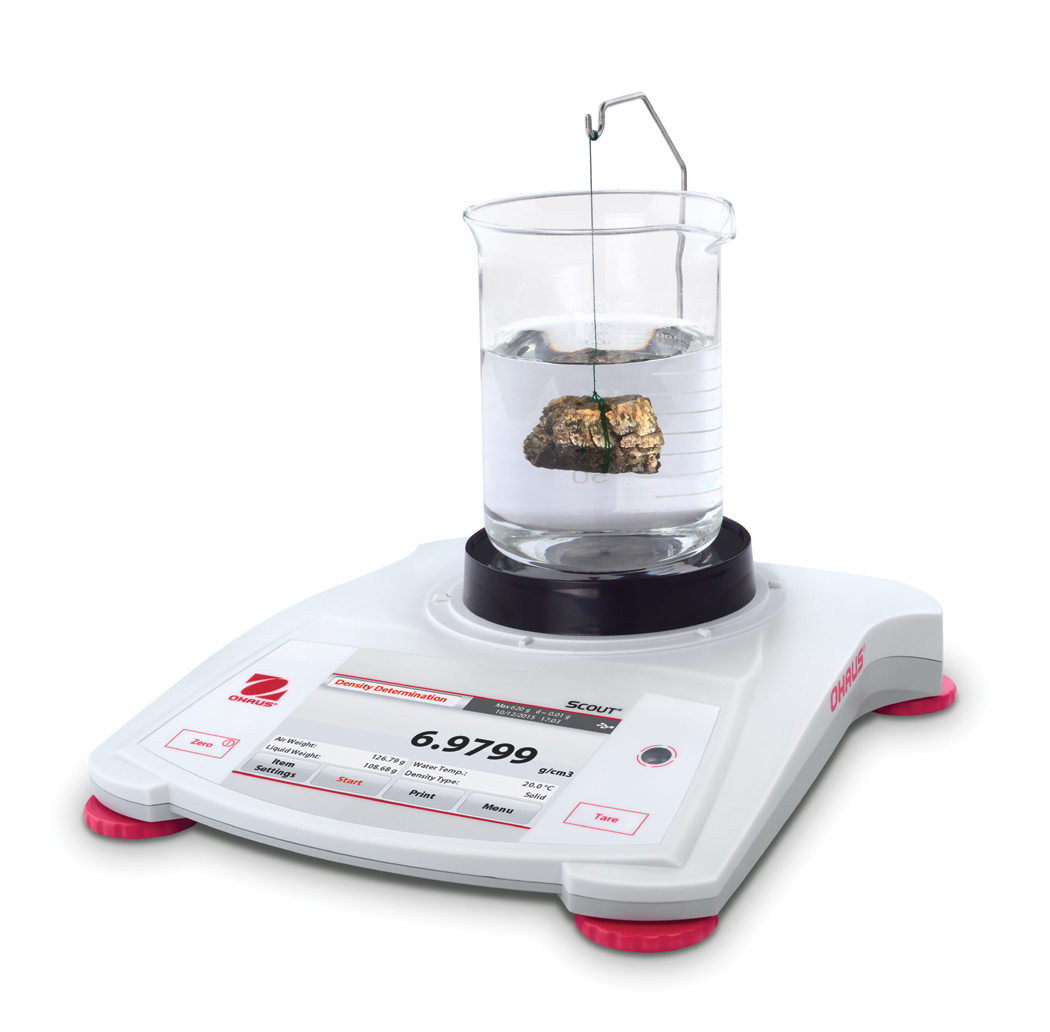

Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing

Features

Display – 4.3″ (109mm) full-color VGA graphic touchscreen display with user-controlled brightness
Power – 4 AA (LR6) Batteries (Not Included);AC Adapter (Included). 6 Hours with Disposable Batteries
Communication – RS232, USB Host, USB Device, Ethernet or Bluetooth® (available as an accessory)

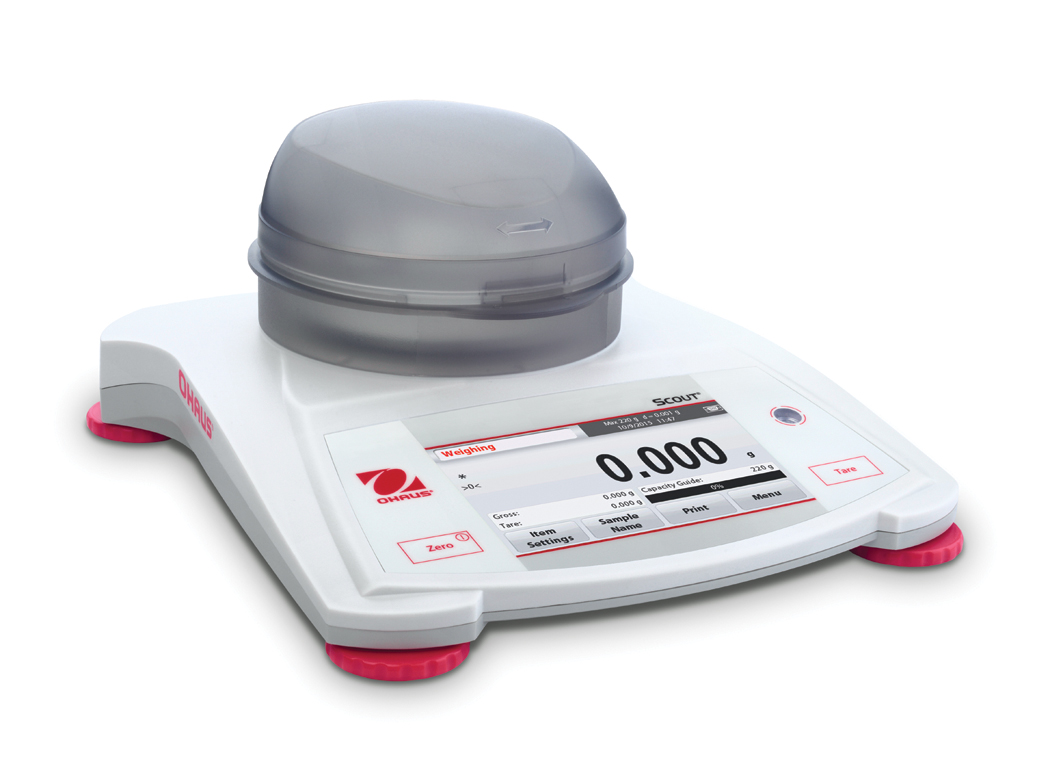

Construction – ABS housing, stainless steel pan, ABS draftshield (1mg models only), weigh below hook, transportation lock, manual calibration lock switch, security slot, adjustable leveling feet, illuminated up-front level indicator
Design – Stability indicator, stackable design with included storage cover (excluding 1mg models), mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, span calibration mass included on models up to 620g capacity

Available Models

Model	Capacity	Readability	Platform Size
STX123	120g	0.001g	Ø 93mm
STX223	220g	0.001g	Ø 93mm
STX222	220g	0.01g	Ø 120mm
STX422	420g	0.01g	Ø 120mm
STX622	620g	0.01g	Ø 120mm
STX1202	1200g	0.01g	140 x 170mm
STX2202	2200g	0.01g	140 x 170mm
STX421	420g	0.1g	Ø 120mm
STX621	620g	0.1g	140 x 170mm
STX2201	2200g	0.1g	140 x 170mm
STX6201	6200g	0.1g	140 x 170mm
STX8200	8200g	1g	140 x 170mm
