Description

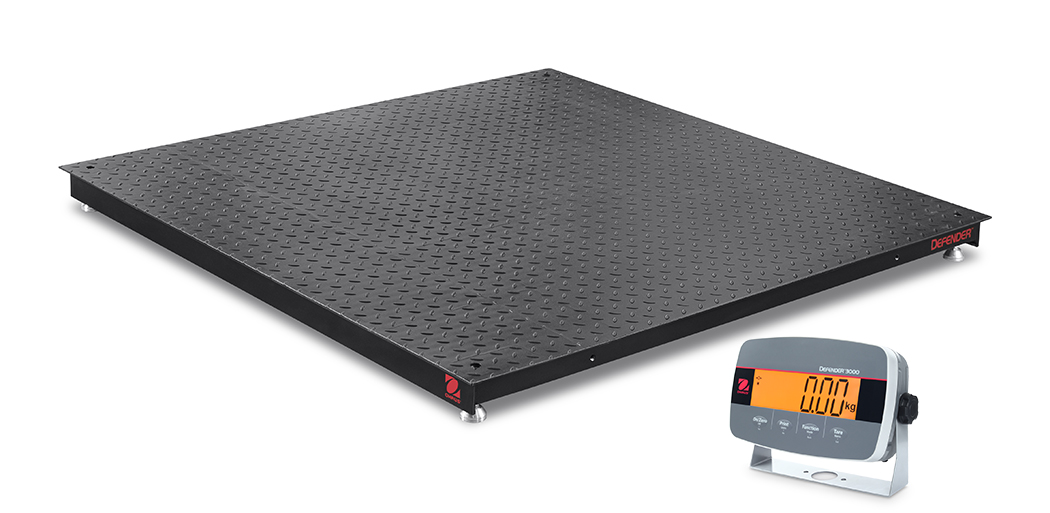

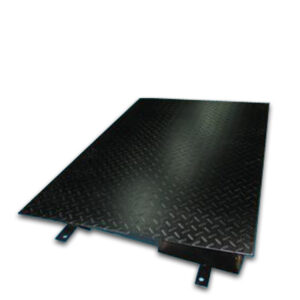

Defender 3000 Platform Series Scales are the value solution for dry weighing needs in industrial & commercial applications. Their high-quality material and construction are designed to minimize distortion under heavy loads, and ensure years of dependable performance. Available with corresponding ramps and mounting accessories, Defender 3000 Platform scales offer a unique combination of value, quality and dependability that you can rely on.

Painted carbon steel, raised treaded surface with four IP67 alloy steel load cells, fixed top plate (5mm thick) with structural bracing that ensures a stiff and solid construction.

Defender 3000 Platform’s come in six models ranging from platform sizes of 1 x 1 m, 1.25 x1.25 m and 1.5 x 1.5 m, and capacities from 600 kg to 3000 kg, allowing greater flexibility for your weighing needs.

Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.

Applications

Weighing, Checkweighing, Counting, Totalization

Features

Display – 7 Segment LCD with multicolor backlight
Power – 6 C (LR14) Batteries (Not Included);AC Power (Included);Rechargeable Battery (Not Included). 100 Hours with Disposable Batteries;30 Hours with Rechargeable Battery
Communication – Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Design – 125% overload protection, four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Available Models

Model	Capacity	Readability	Platform Size
i-DF33P600B1R	600kg	0.2kg	1000 x 1000mm
i-DF33P1500B1R	1500kg	0.5kg	1000 x 1000mm
i-DF33P1500B1L	1500kg	0.5kg	1250 x 1250mm
i-DF33P3000B1L	3000kg	1kg	1250 x 1250mm
i-DF33P1500B1X	1500kg	0.5kg	1500 x 1500mm
i-DF33P3000B1X	3000kg	1kg	1500 x 1500mm
i-DF33P600B1R-M	600kg	0.2kg	1000 x 1000mm
i-DF33P1500B1R-M	1500kg	0.5kg	1000 x 1000mm
i-DF33P1500B1L-M	1500kg	0.5kg	1250 x 1250mm
i-DF33P3000B1L-M	3000kg	1kg	1250 x 1250mm
i-DF33P1500B1X-M	1500kg	0.5kg	1500 x 1500mm
i-DF33P3000B1X-M	3000kg	1kg	1500 x 1500mm
