Description

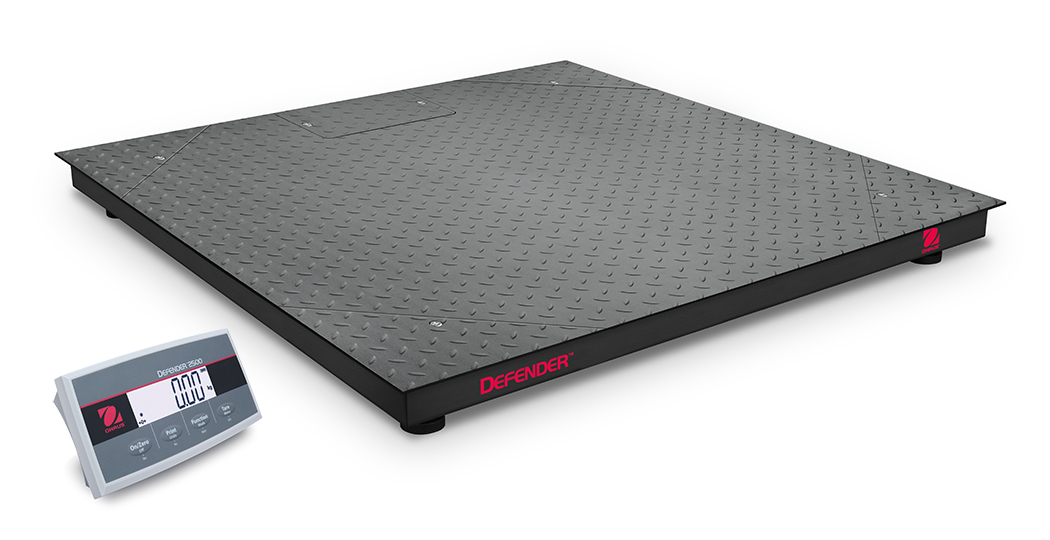

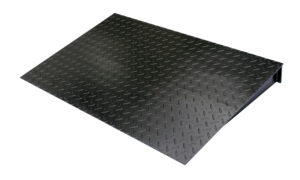

OHAUS Defender 2500 Series of floor scales are the best value for all your heavy-duty weighing needs. Available in both square and rectangular designs, corresponding ramps and mounting accessories, and with the added benefit of pit mounting options, the OHAUS Defender 2500 floor platforms and scales offer a unique combination of value, quality and dependability that your company can rely on.

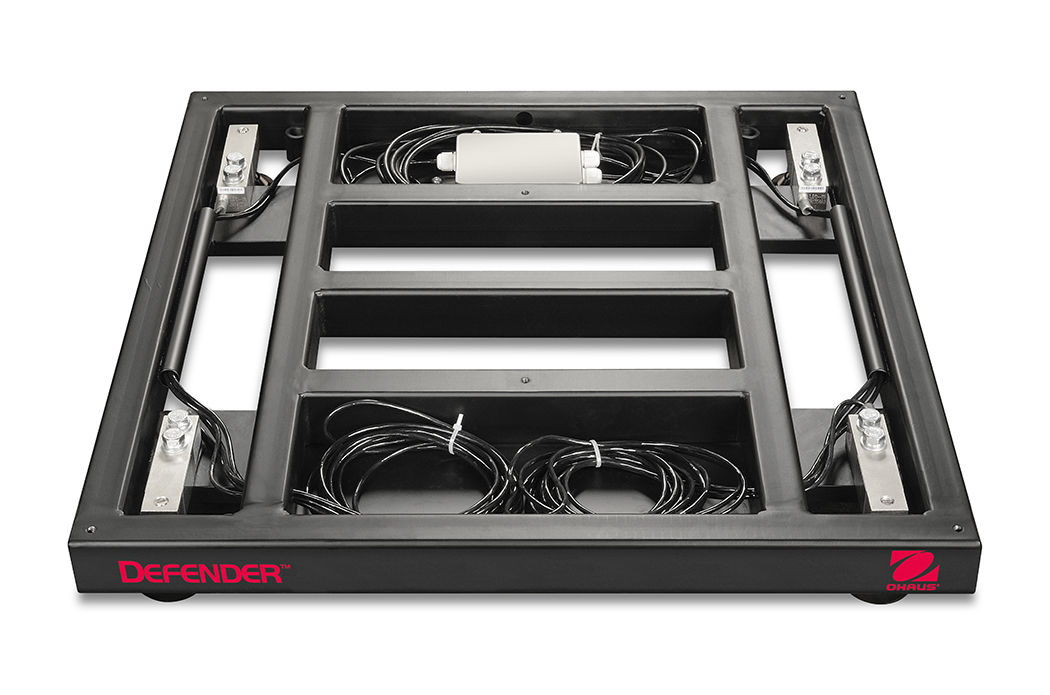

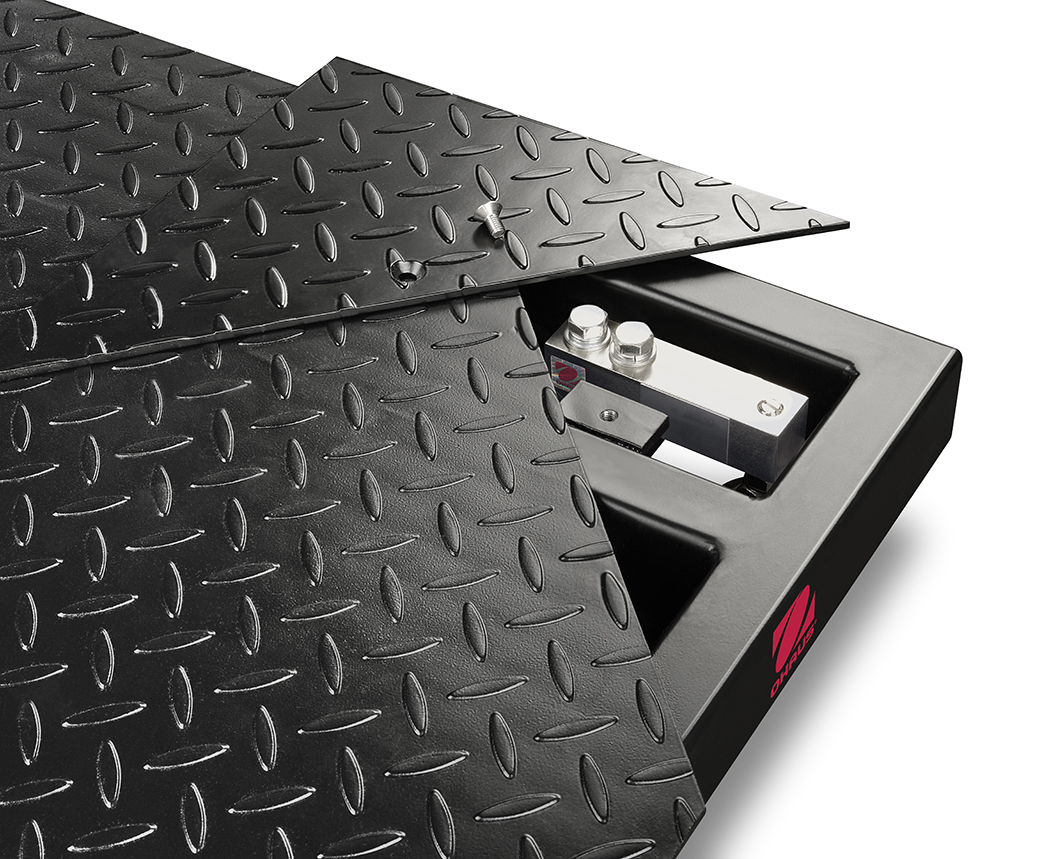

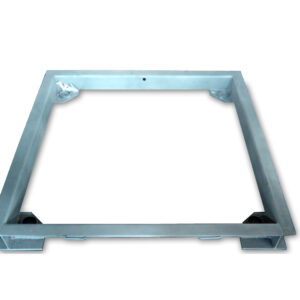

Direct access from the top to the load cells and the junction box, makes adjustments easy when the scale is mounted in its available pit frame.

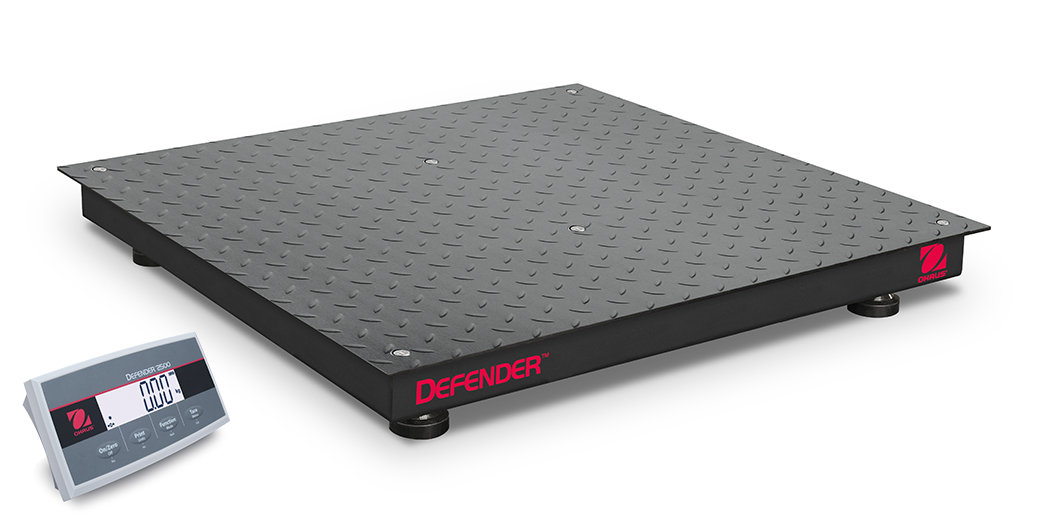

Square and rectangular platforms are available in five sizes from 0.8 x 0.8m to 1.5 x 1.5m and also come with maximum capacities of 1500kg or 3000kg.

The Defender 2500 floor scale also includes 4 OIML approved IP67 alloy steel load cell and IP65 stainless steel junction box is protected from dust and water.

Applications

Weighing, Counting, Dynamic Weighing / Display Hold, Totalization, Peak Hold

Features

Display – 6-digit, 7-segment LCD display with white backlight, 1.1 in./28 mm high digits
Power – 4 AA (LR6) Batteries (Not Included);AC Adapter (Included);USB Cable (Included). 70 Hours with Disposable Batteries
Communication – Easy access communication ports including standard RS232 and USB type C
Construction – ABS housing indicator and powder-coated steel mounting bracket, black powder coated steel treaded platform, IP65 stainless steel junction box, 4 LBZ4 IP67 OIML R60 alloy steel load cells with top height adjustment.
Design – Selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto-off, auto tare. Painted and stainless steel floor stands (available as accessories)

Available Models

Model	Capacity	Readability	Platform Size
i-DF25P1500D1S	1500kg	0.5kg	800 x 800mm
i-DF25P1500D1R	1500kg	0.5kg	1000 x 1000mm
i-DF25P1500D1L	1500kg	0.5kg	1200 x 1200mm
i-DF25P3000D1L	3000kg	1kg	1200 x 1200mm
i-DF25P1500D1LX	1500kg	0.5kg	1200 x 1500mm
i-DF25P3000D1LX	3000kg	1kg	1200 x 1500mm
i-DF25P1500D1X	1500kg	0.5kg	1500 x 1500mm
i-DF25P3000D1X	3000kg	1kg	1500 x 1500mm
