Description

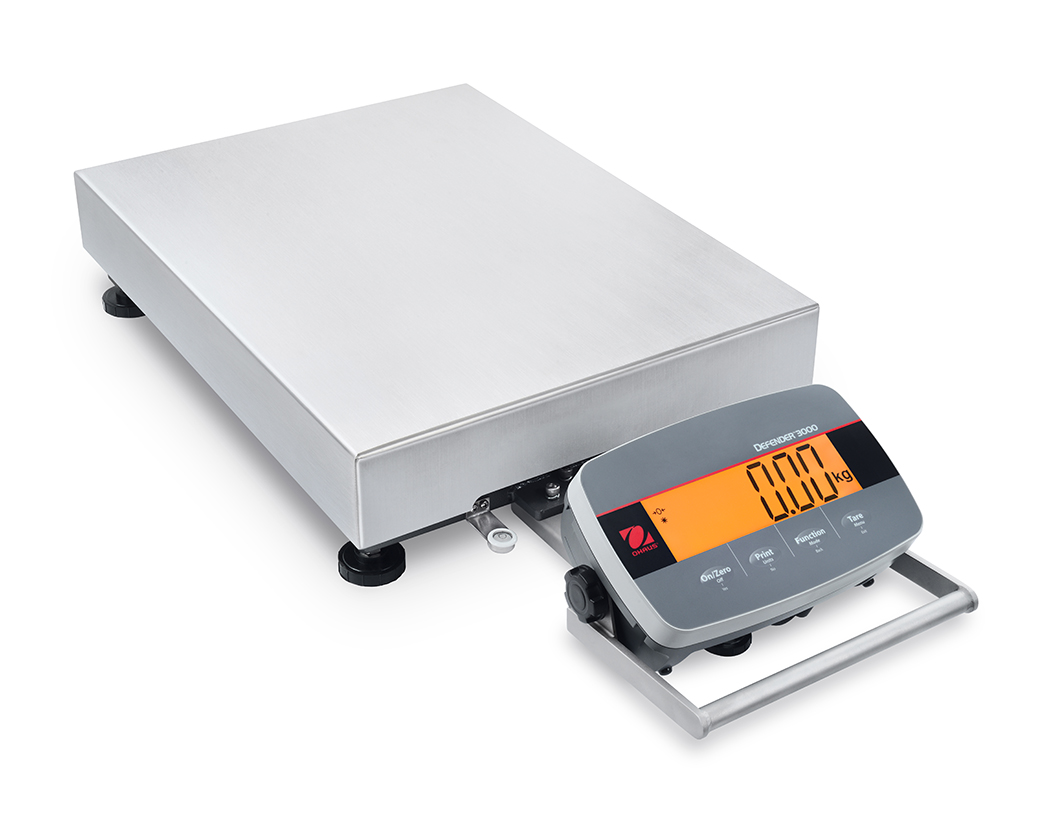

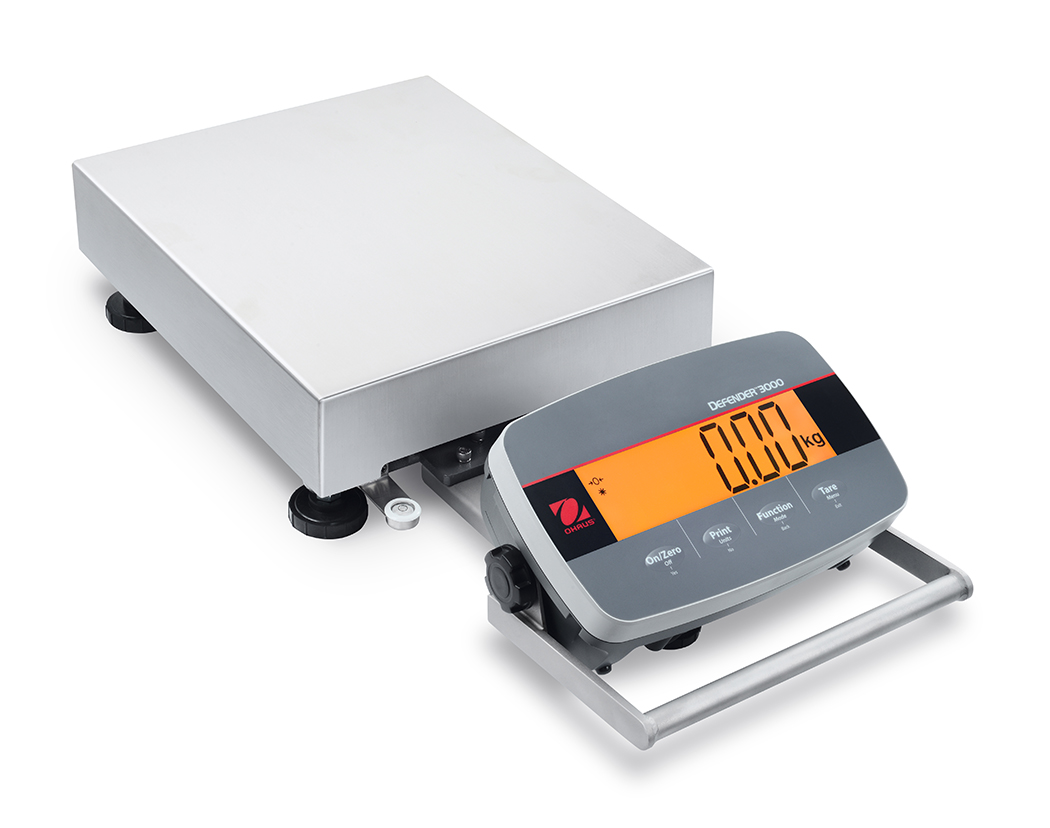

The Defender 3000 Front Mount scale is ideal for general weighing, simple counting and checkweighing applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation and flexible mounting capabilities.

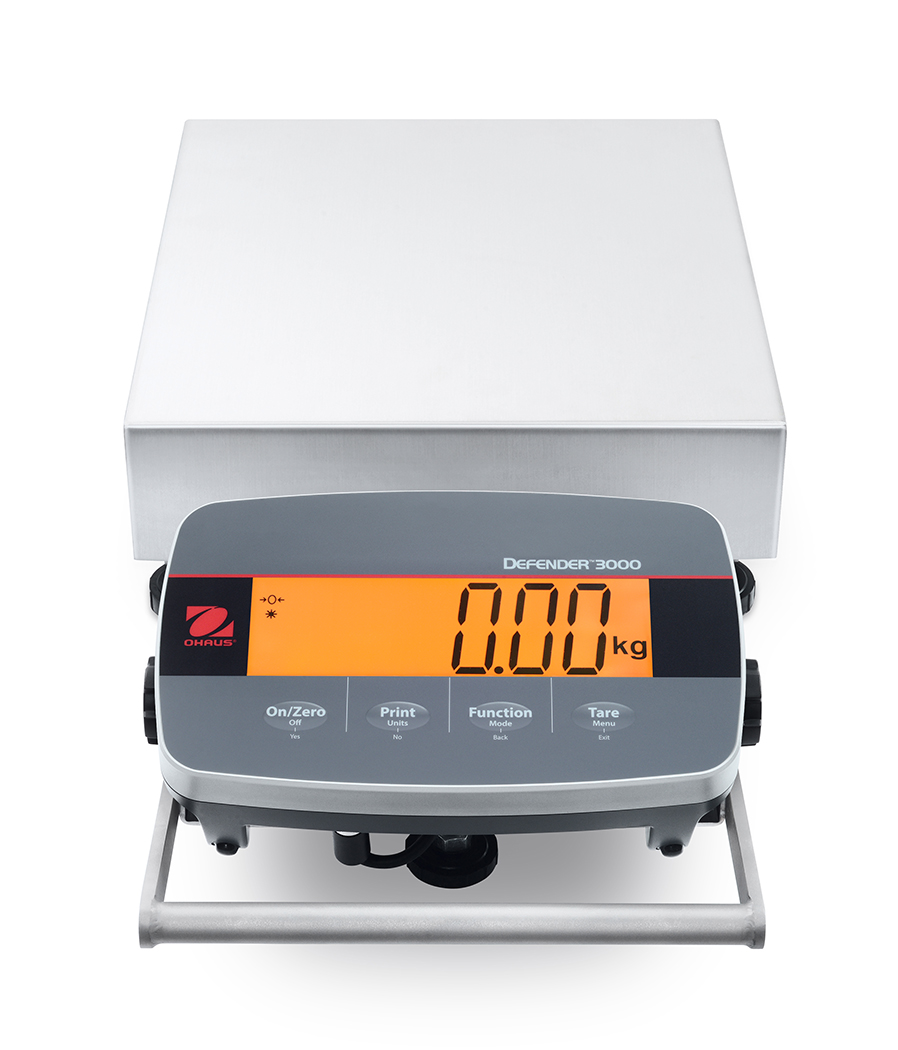

Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes color (yellow/green/red) to alert when within the target weight range.

This tough industrial scale features a 304-stainless steel platform, powder-coated steel tubular frame, and aluminum load cell. The Defender 3000 Front Mount’s indicator features a durable ABS housing and steel mounting bracket.

The Defender 3000 Front Mount features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.

Applications

Weighing, Checkweighing, Counting, Totalization.

Features

Display – 7 Segment LCD with multicolor backlight
Power – 6 C (LR14) Batteries (Not Included);AC Adapter (Included);Rechargeable Battery (Included). 100 Hours with Rechargeable Battery;360 Hours with Disposable Batteries
Communication – Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Design – 150% overload protection

Available Models

Model	Capacity	Readability	Platform Size
i-D33P15B1R5	15kg	2g	355 x 305mm
i-D33P30B1R5	30kg	5g	355 x 305mm
i-D33P60B1R5	60kg	10g	355 x 305mm
i-D33P60B1L5	60kg	10g	550 x 420mm
i-D33P150B1L5	150kg	20g	550 x 420mm
i-D33P150B1X5	150kg	20g	650 x 500mm
i-D33P300B1X5	300kg	50g	650 x 500mm
i-D33P15B1R5-M	15kg	5g	355 x 305mm
i-D33P30B1R5-M	30kg	10g	355 x 305mm
i-D33P60B1R5-M	60kg	20g	355 x 305mm
i-D33P60B1L5-M	60kg	20g	550 x 420mm
i-D33P150B1L5-M	150kg	50g	550 x 420mm
i-D33P150B1X5-M	150kg	50g	650 x 500mm
i-D33P300B1X5-M	300kg	100g	650 x 500mm
