Description

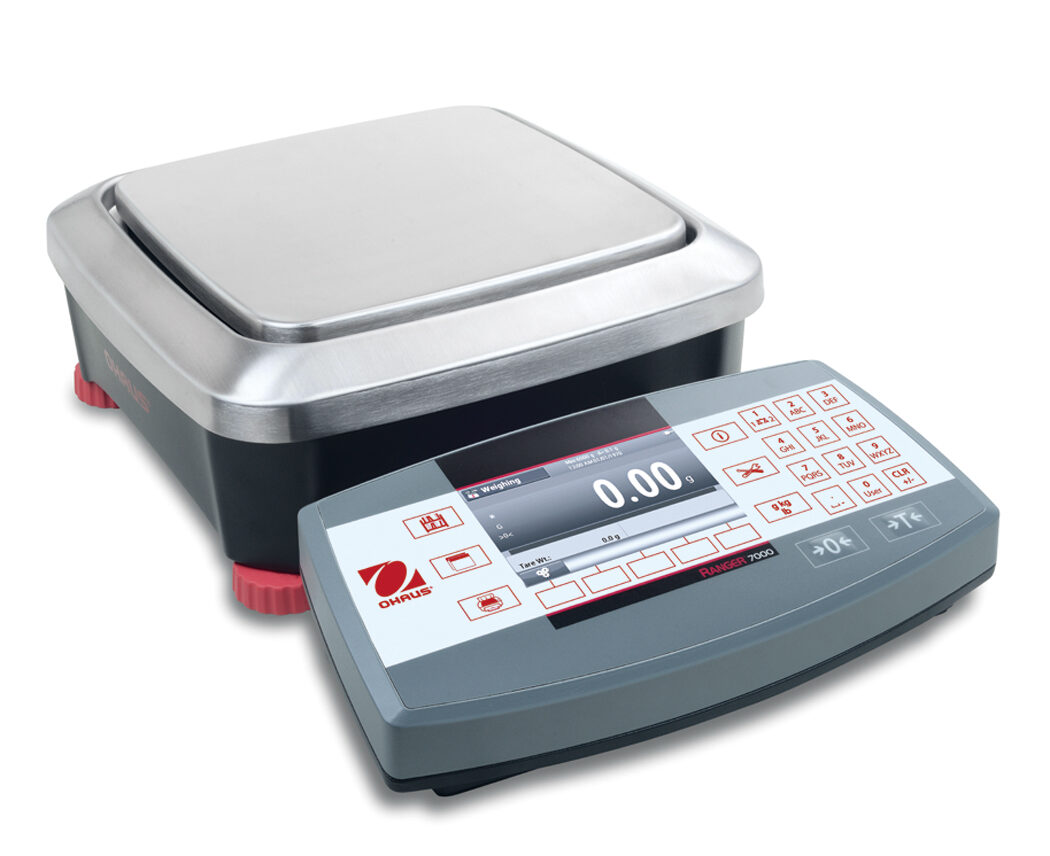

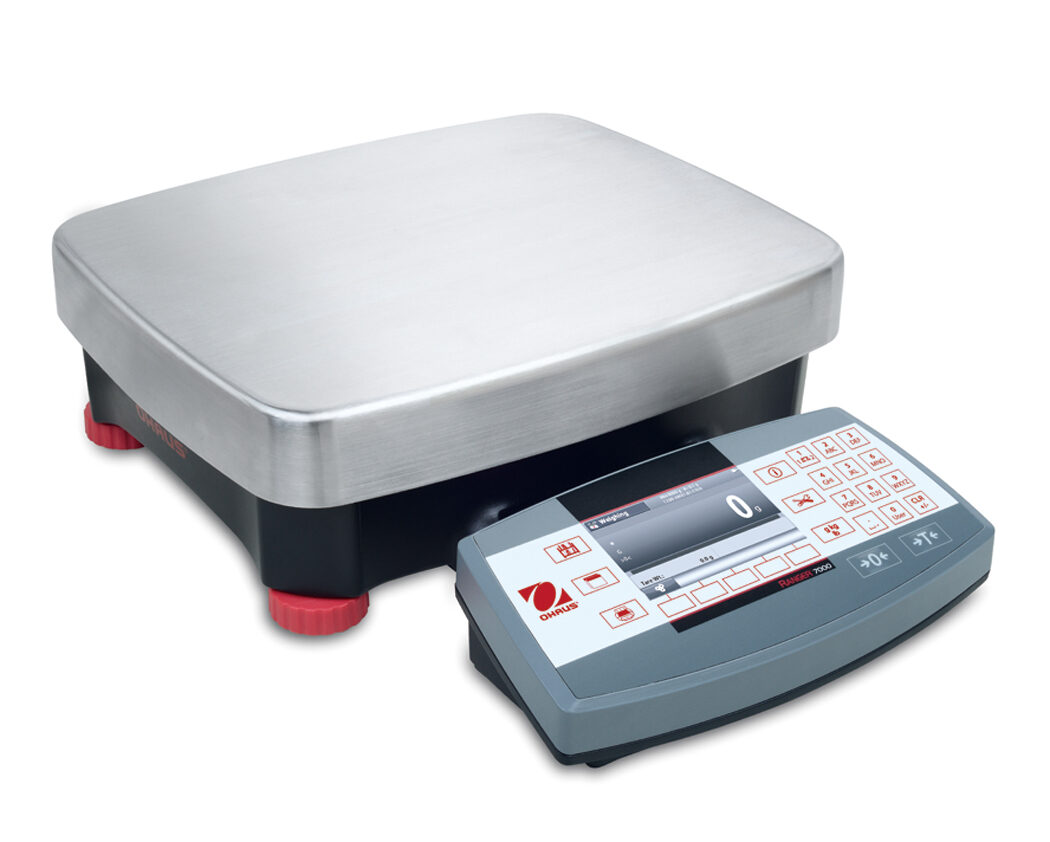

For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.

Simplify complex applications and minimize the need for manual calculations with 10 advanced application modes, peripheral device control and an optional kit for a second scale platform.

The Ranger 7000 is the most precise scale in its class with one-second stabilization time, up to 75,000d or 350,000d display resolution and legal-for-trade certifications.

Extremely durable scale designed to thrive in rugged industrial environments. Features IP54-rated metal housing and sealed metal terminal.

Applications

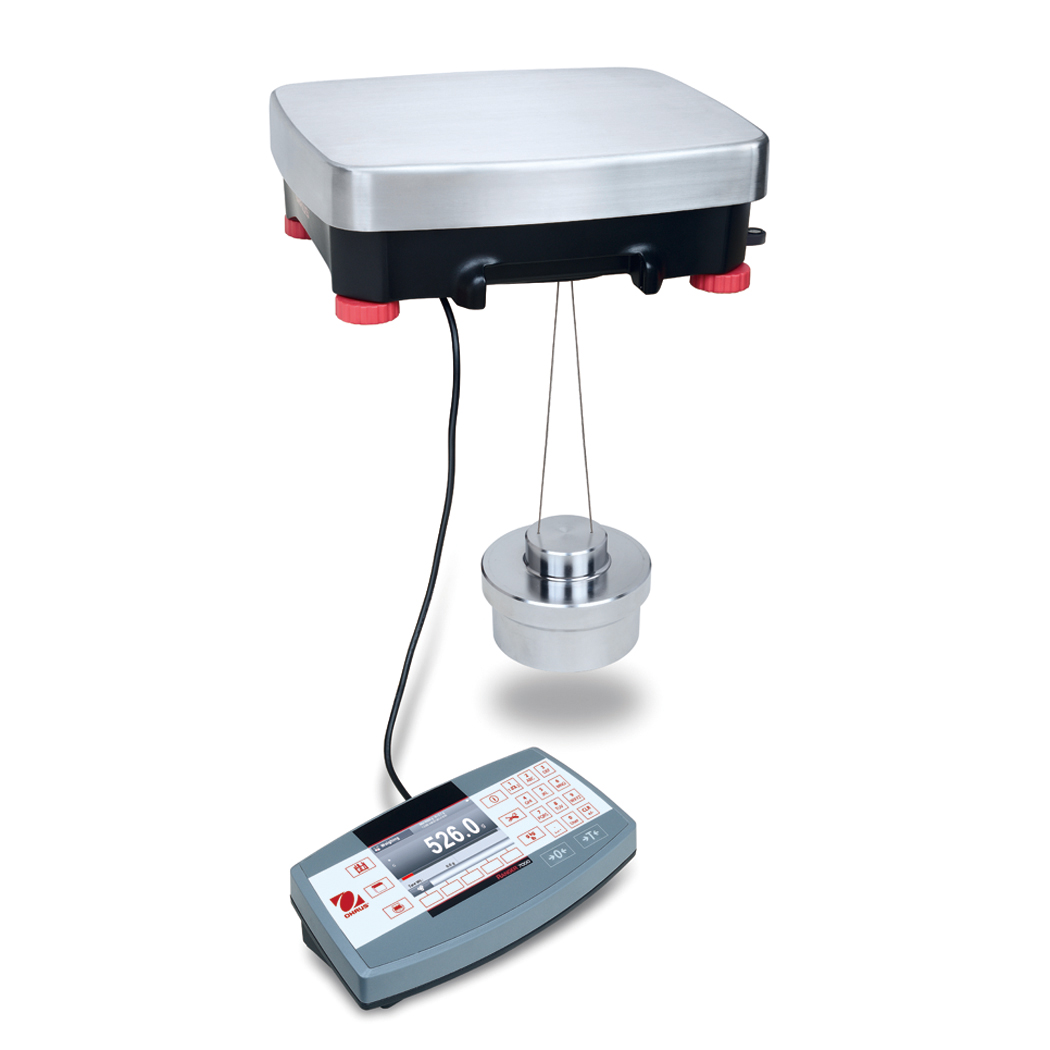

Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis

Features

Display – 4.3″ (109 mm) Full-color WQVGA graphic display with user-controlled brightness
Power – AC Power (Included);Rechargeable Battery (Not Included). 9 Hours with Rechargeable Battery
Communication – 2nd RS232 (Available as an Accessory);Ethernet (Available as an Accessory);RS232 (Included);USB (Included)
Design – Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare

Available Models

Model	Capacity	Readability	Platform Size
R71MHD3-GB	3kg	0.01g	210 x 210mm
R71MHD6-GB	6kg	0.02g	210 x 210mm
R71MHD15-GB	15kg	0.1g	311 x 377mm
R71MHD35-GB	35kg	0.1g	311 x 377mm
R71MD3-GB	3kg	0.05g	280 x 280mm
R71MD6-GB	6kg	0.1g	280 x 280mm
R71MD15-GB	15kg	0.2g	311 x 377mm
R71MD35-GB	35kg	0.5g	311 x 377mm
R71MD3GB-M	3kg	0.5g	280 x 280mm
R71MD6GB-M	6kg	1g	280 x 280mm
R71MD15GB-M	15kg	2g	311 x 377mm
R71MD35GB-M	35kg	5g	311 x 377mm
R71MHD3GB-M	3kg	0.1g	240 x 240mm
R71MHD6GB-M	6kg	0.2g	210 x 210mm
R71MHD15GB-M	15kg	1g	311 x 377mm
R71MHD35GB-M	35kg	1g	311 x 377mm
R71MD60-GB	60kg	1g	311 x 377mm
R71MD60GB-M	60kg	10g	311 x 377mm
