Description

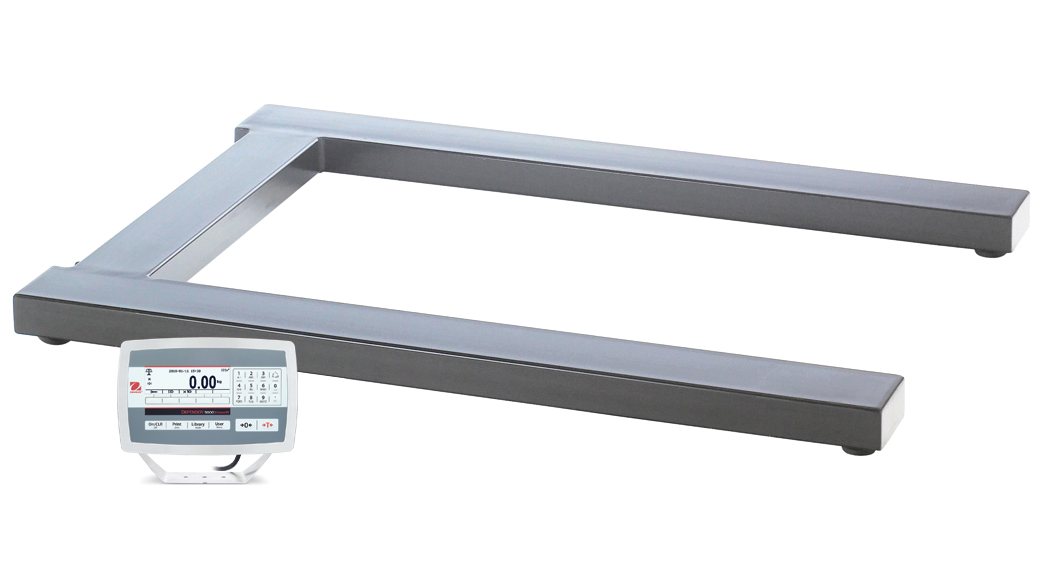

The OHAUS next generation Defender 5000 Stainless Pallet Scale series is a solid line-up of painted steel and stainless steel platforms and scales. Its high-quality German engineered construction, with stainless steel IP68 hermetically sealed load cells ensure durability and reliability that will withstand years of daily usage in industrial environments.

OHAUS Defender 5000 Stainless Pallet Scale is equipped with new TD52 series indicator with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation.

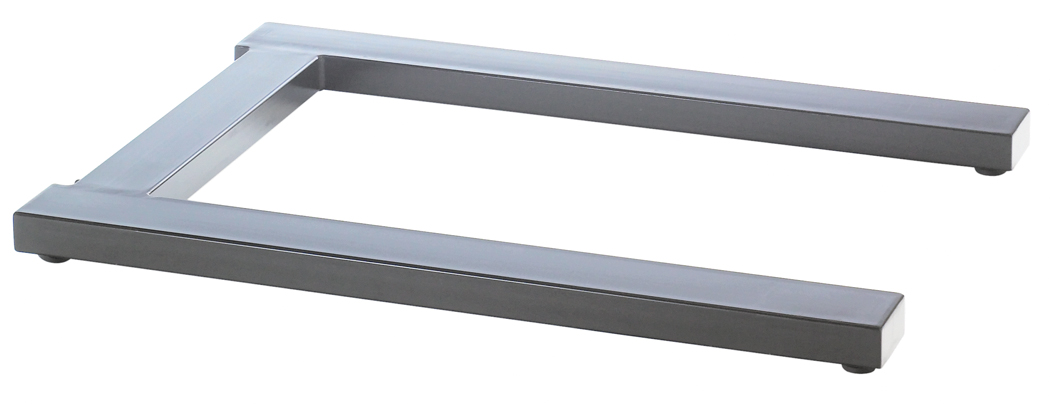

The U-frame provides easy on and off loading of open-bottom pallets and containers, reducing risk of injury and over-exertion.

Four IP68 electro-polished stainless steel load cells that are laser-weld hermetically sealed and OIML approved are standard on all models.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing (Display Hold)

Features

Display – Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Power – AC Power (Included);Rechargeable Battery (Not Included). 20 Hours with Rechargeable Battery
Communication – 2nd RS232/RS485/USB (Available as an Accessory);Ethernet (Available as an Accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (Available as an Accessory)
Construction –
Design – Structural channel bracing and pendulum design feet with removable rubber cap, 150% overload protection. Checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare.

Available Models

Model	Capacity	Readability	Platform Size
DFP52XW600K1-GB	600kg	0.1kg	1256 x 840mm
DFP52XW1500K1-GB	1500kg	0.2kg	1256 x 840mm
DFP52XW600K1-M	600kg	0.2kg	1256 x 840mm
DFP52XW1500K1-M	1500kg	0.5kg	1256 x 840mm
